Interactive Snowfield

LingFeng - 2021/10/20

You can use these Blue Prints to make snowfield,mud road or desert which can left trails.Snow will pile up on the edge of trail.

  • 支持的平台
  • 支持的引擎版本
    4.26 - 4.27
  • 下载类型
    完整项目
    此产品包含一个完整的虚幻引擎项目文件夹,含有配置文件、内容文件和.uproject文件,可以作为创建新项目的模板使用。

Email:2523355376@qq.com


video links:

bilibili: https://b23.tv/X04yxGh

youtube: https://youtu.be/rpcyDnITNDQ


Support landscape material.

If you want to use snow trails on your landscape you can use a SnowActor_Land who will follow player's camera and only draw limited area around player's pawn.

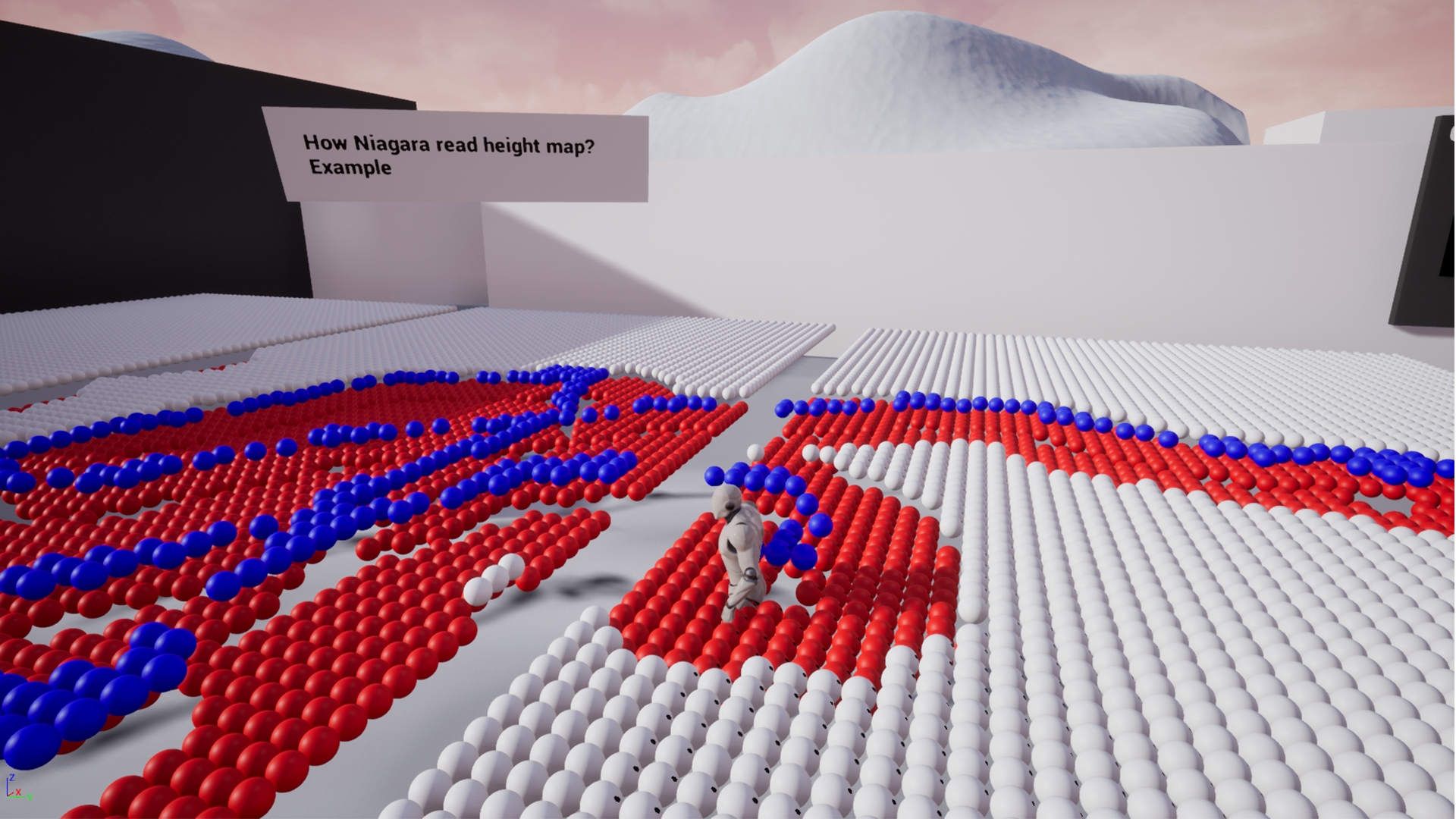

You can also create a SnowActor who will draw proven area with own render target,it's useful for trails you don't want fade by distance.It can use with Niagara.


Tow draw ways are supported:

Use a texture to draw trails which is useful for simple shapes such as sphere,box,or car.

Use a scene capture 2D which follows your actor to draw accurate trail with depth.Character's footsteps and complex skeleton mesh with animation could draw their trails accurately by this way.


To save computing time

Drawers won't draw until it's moving

SnowActors will update only when draw information updated

Tessellation depend on distance.

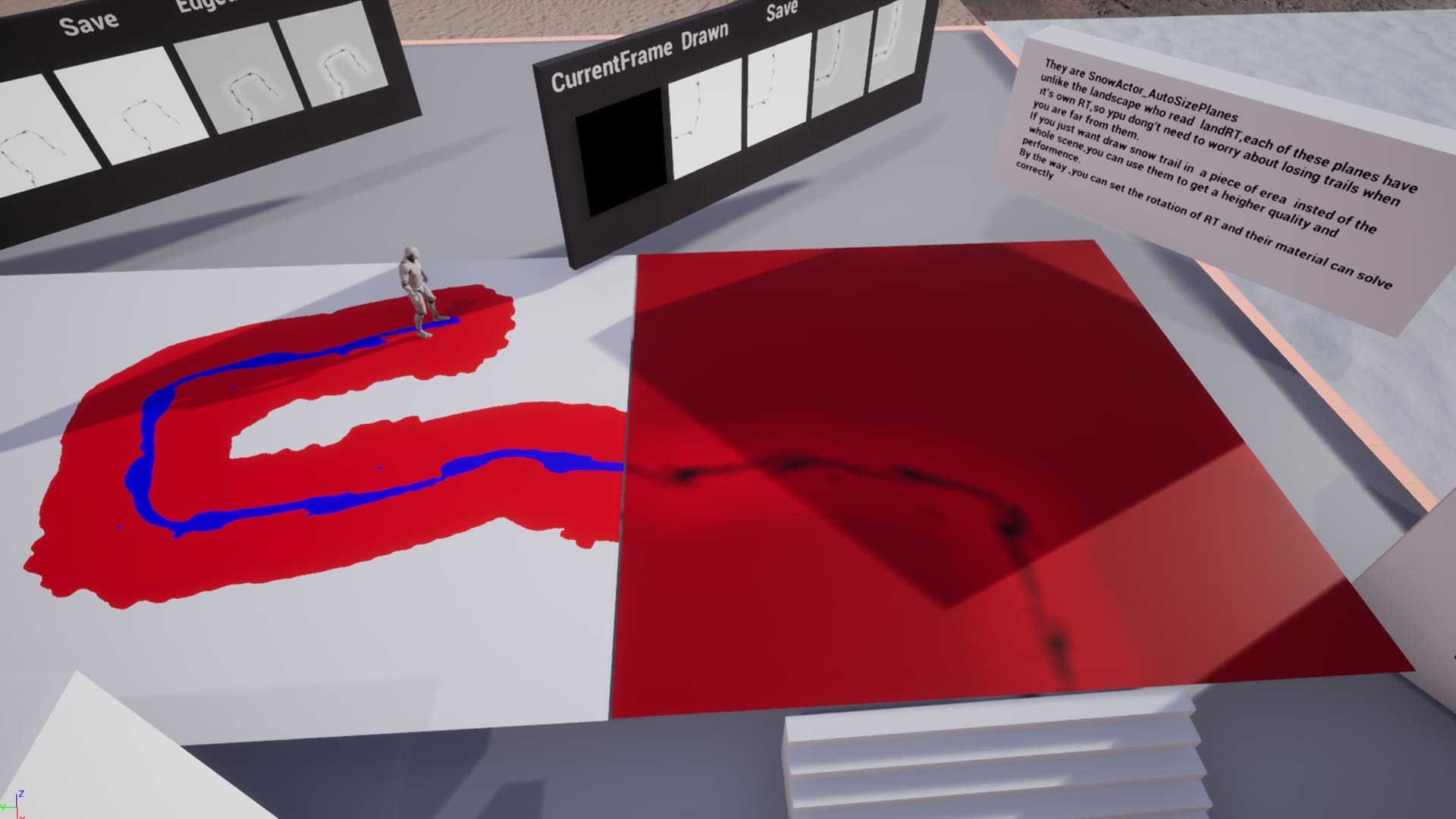

A debug board Actor is equipped to show how height map are drawn.


You can modify banked shape and blur quality by material used to draw render target.


Snow quality is controllable,you can change render target size and capture orthogonal width,capture render target size.


The trail is drawn on the render target

Drawer: They are responsible for generating draw information telling the manager where to draw and what kind of the pattern.

Manager:He will distribute the collected draw information to the SnowActor who should draw each piece of in

formation.

Snowactor: The actor that actually draws the snow height map. It will draw the snow height map using the draw information told by the manager.

技术细节

Number of Blueprints:12

Input: ( Keyboard,Mouse)

Network Replicated: (No)

Supported Development Platforms:windows 10

Windows: (Yes)

Mac: (Yes)

Documentation: Link (or a description of where users can find) the documentation

Important/Additional Notes:
