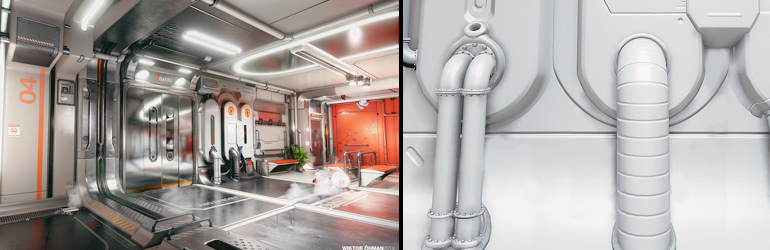

New Release on Marketplace: Sci-Fi Hallway

By Wiktor Öhman

This hallway scene inspired by a Deus Ex concept is available now to all active UE4 subscribers on Marketplace. The following guest blog post by Quixel's CMO Wiktor Öhman​.

INITIAL THOUGHTS & PLANS

I've been an avid UDK and Quixel tool user for a long time, and during these years I've established a pretty decent workflow which allows me to quickly try out ideas and iterate on them without much trouble.

When I got access to Unreal Engine 4 and was about to start on this new project I had a clear plan in my head: I wanted to see how well my legacy DDO → UDK workflow would translate to the new Quixel SUITE → UE4. Turns out, it translated incredibly well.

SciFi Screenshot 1

I chose to base my environment on the Deus Ex concept for two reasons. First, it's Deus Ex, which I love, and secondly, it has a lot of clean and metallic surfaces which could prove to be a difficult thing both to texture and to make visually interesting.

FIRST COUPLE OF DAYS

During the first couple of days with UE4 I mainly watched the video tutorial series and read through the documentation, which really got me up to speed quickly. Everything felt very streamlined and easy to understand.

I modeled one of the tiles and baked out a tangent space normal, AO, object space normal, gradient map and a color map. Then I proceeded to add details to the normal and AO that would've taken unnecessary time to model by instead using the new NDO, a tool in the Quixel SUITE for sculpting and designing normal maps inside Photoshop.

Next came the really interesting part – the texturing. One of the things that had me both worried and excited about UE4 was the new shading system. I still hadn't made an entire scene with PBR, and I wasn't entirely sure how UE4 would work with my textures. I went ahead and textured the tile quickly using DDO, which took me about half an hour, and then imported it into UE4.

SciFi Screenshot 2

I started by creating a master material which was pretty basic. It did its job and looked really good straight out of the box, which was a huge relief, seeing as my workflow was pretty much intact. I did, however, want to make a couple of changes to the workflow and the master material to allow me to quickly adjust the reflectance values in-engine.

SciFi Screenshot 3

THE MASTER MATERIAL

SciFi Screenshot 4

What I wanted was the ability to quickly make fine adjustments to the reflectance values and the colors based on a mask. I created a mask with two values in each channel (RGB) and the AO in the Alpha. The two values were 50% grey and 100% white. I then separated these values in the material editor and used them to mask out areas of my base color, specular, metallic and roughness maps.

Now that I had 6 different “material groups” I could quickly adjust the values, and it allowed me to have several different real-time editable material types in a single material, such as plastics, glass, and metal and so on.

At this point I was pretty happy with my master material, but when looking closer at my asset I realized I needed some micro detail when doing close-up shots. The first thing that came to mind was to add a detail normal, but I quickly decided against that, because I've never really been a fan of the results you get with that. Instead, I went through the Megascans material library that comes bundled with DDO and took one of the roughness maps associated with one of said materials; I then coupled the roughness map with the unique roughness map created for the asset.

I didn't know what to expect, seeing as I'd never tried this before, but when I saved the material and previewed it, it looked really good, so I decided to go with this approach.

Screenshot 5

I ended up using two different Megascans roughness masks (or scuff maps, if you prefer) for the scene: one brushed steel and one scratched aluminum, which I switched between depending on the target surface. These scans were also used for the unique texturing with DDO, and helped me create believable clean surfaces easily.

CONCLUSION

All in all, this was an extremely pleasant experience without any frustrating moments, and I was really happy to see such a good compatibility between the Quixel SUITE and Unreal Engine 4.

Texturing the entire scene took less than 5 hours all in all. It was easy to organize the scene, and light it, and the new material editor feels really, really good. Everything was put together in 4 weeks (including the time it took to create all assets from scratch), and for me this goes to show how getting into UE4 and Quixel SUITE is incredibly fast and how much these tools contribute toward the marriage between quality and efficiency.

As a side note, I got the chance to try out the Blueprint system a bit when animating the fan, and I was pleasantly surprised to see how much easier it is to work with than Kismet. I will definitely be trying to make more complex stuff using the new visual scripting system.

UE4 is a huge step up in all areas, I would say.

Visit our forum discussion to talk about this release with other developers.
